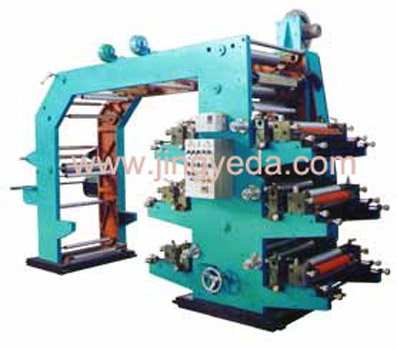

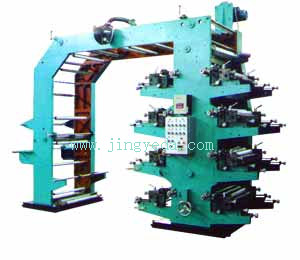

Flexo Printing Machine

Time: 2008-08-21 Click£º  ¡¾Font-size£ºBig Middle Small¡¿



Feature:
This machine is for web roll printing of plastic film, cellophane paper, tissue, aluminum and other web materials. 1 to 12 colors and many special requirements may fulfill.

Advantage:

  1. Accurate registration and clear printing.
  2. AC motor driving. V. F. drive for speed regulation. Easy and stable.
  3. With auto alarm at film break and digital counter.
  4. Easy plate align and registration align.
  5. Hot air drying and automatic unwinding. Automatic tension controller + sensor + magnetic brake/ clutch and double lanes printing are optional at request.
  6. Ink saving and stable printing.
  7. Compact design and workshop saving.
  8. It may be used as a common gluing machine
  9. Ceramic anilox is optional at request.

Technical parameters:

No.

Description

Model

Size

Print width

Print length

Print speed

1

2flexo

JXJ-2500

20"

500mm

1,000mm

10-70 m/min

2

2flexo

JXJ-2650

25"

650mm

1,000mm

10-70 m/min

3

2flexo

JXJ-2750

30"

750mm

1,000mm

10-70 m/min

4

2flexo

JXJ-21000

40"

1,000mm

1,000mm

10-70 m/min

No.

Description

Model

Size

Print width

Print length

Print speed

1

4flexo

JXJ-4500

20"

500 mm

1,000 mm

10-70 m/min

2

4flexo

JXJ-4650

25"

650 mm

1,000 mm

10-70 m/min

3

4flexo

JXJ-4750

30"

750 mm

1,000 mm

10-70 m/min

4

4flexo

JXJ-41000

40"

1,000 mm

1,000 mm

10-70 m/min

No.

Description

Model

Size

Print width

Print length

Print speed

1

6flexo

JXG-6500

20"

500mm

1,000mm

10-70 m/min

2

6flexo

JXG-6650

25"

650mm

1,000mm

10-70 m/min

3

6flexo

JXG-6750

30"

750mm

1,000mm

10-70 m/min

No.

Description

Model

Size

Print width

Print length

Print speed

1

8flexo

JXG-8500

20"

500mm

1,000mm

10-70 m/min

2

8flexo

JXG-8650

25"

650mm

1,000mm

10-70 m/min

3

8flexo

JXG-8750

30"

750mm

1,000mm

10-70 m/min

No.

Description

Model

Size

Print width

Print length

Print speed

1

10flexo

JXG-10500

20"

500mm

1000mm

10-70 m/min
